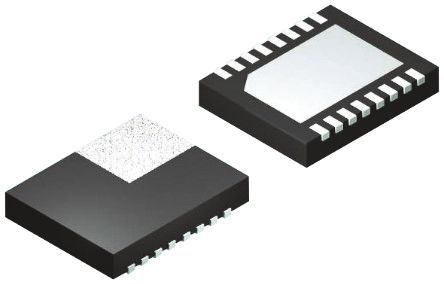

- LDC1000NHRT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC33236075
-
Category:DA Converter, AD Converter IC
-
Package:WSON-16
-
Datasheet:Datasheet 3D Model
-
Description:5V, High Resolution, Inductance to Digital Converter for Inductive Sensing Applications 16-WSON -40℃ to 125℃
-
Stock Locations:
-
Availability:9,336 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.88
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LDC1000NHRT is a 5V, high resolution, Inductance to Digital Converter for inductive sensing applications. Inductive sensing is a contact-less, short-range sensing technology that enables high-resolution sensing of conductive targets in the presence of dust, dirt, oil and moisture, making it extremely reliable in hostile environments. Using a coil which can be created on a PCB as a sensing element, the LDC1000NHRT enables ultra-low cost system solutions. Inductive sensing technology enables precise measurement of linear/angular position, displacement, motion, compression, vibration, metal composition. Inductive sensing offers better performance and reliability at lower cost than other competitive solutions. The LDC1000NHRT is the world"s first inductance-to-digital converter, offering the benefits of inductive sensing in a low-power, small-footprint solution.
- Magnet-free operation
- Sub-micron precision
- Adjustable sensing range (through coil design)
- Remote sensor placement (decoupling LDC from harsh environments)
- High durability (by virtue of contact-less operation)
- Insensitivity to environmental interference (such as dirt, dust, water, oil)
- 4.75 to 5.25V (analogue) and 1.8 to 5.25V (IO) Supply voltage
- 1.7mA Supply current (without LC tank)
- 16-bit Rp resolution
- 24-bit L resolution
- 5kHz to 5MHz LC Frequency range
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
LDC1000NHRT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | WSON-16 |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 1.70 mA |
| Number of Channels | 2 Channel |
| Number of Bits | 16 Bit |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.3V, 5V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
