Description

DESCRIPTION
Transient voltage suppressor diodes especially useful in protecting integrated circuits, MOS, hybrids and other overvoltages sensitive semicon ductors and components.
FEATURES
■ TRANSIENT VOLTAGE SUPPRESSOR DIODE ESPECIALLY DESIGNED FOR LOAD DUMP PROTECTION
■ COMPLIANT WITH MAIN STANDARDS SUCH AS:
ISO / DTR 7637

Show

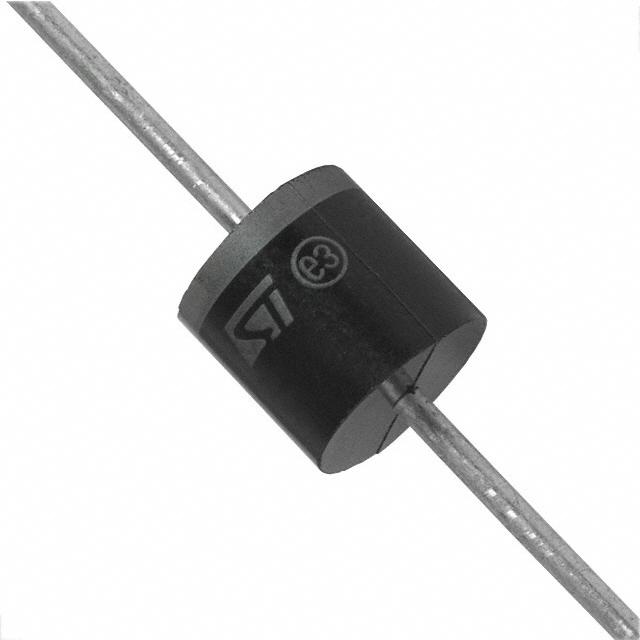

LDP24A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	R-6
Breakdown Voltage	25 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	5 W
Clamping Voltage	40 V
Max Repetitive Reverse Voltage (Vrrm)	24V
Test Current	1 mA
Max Breakdown Voltage	32 V
Peak Pulse Power	5 W
Min Breakdown Voltage	25 V
Reverse Breakdown Voltage	25 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175 ℃
	Show
Size-Length	9.1 mm
Size-Width	9.1 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
