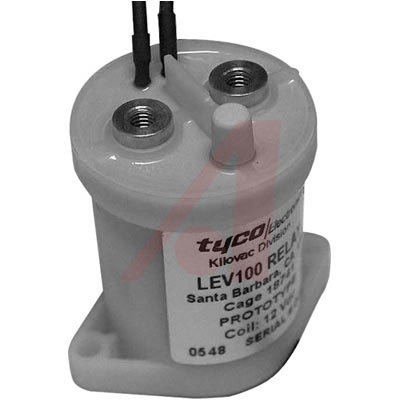

- LEV100A4ANG - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC17615788
-
Category:Power Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:TE CONNECTIVITY / KILOVAC LEV100A4ANG Contactor, 900VDC, 1Pole, SPST-NO, Panel, 100A
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LEV100A4ANG is a Bottom-mount Contactor with SPST-NO-DM contact, compact epoxy-sealed resin enclosure, M5 x 10 power terminals and without stripped wires. This LEV100-series features hermetically sealed intrinsically safe, operates in explosive/harsh environments without oxidation or contamination of contacts, including long periods of non-operation. Robust integral mounting plate on bottom of enclosure accepts two M4 screws. 8kV isolation between open contacts permits use for high voltage isolation and carry. Designed and built in accordance to AIAG QS9000.
- 15" Coil wire length
- Nitrogen-filled contact chamber
- Flying leads for coil connections
- Load terminals threaded for M5 bolts
- * 10W Maximum coil power
- 40ms Operate and 10ms release maximum time
- -40 to 85°C Operating temperature range
LEV100A4ANG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel |
| Number of Pins | 2 Pin |
| Case/Package | - |
| Supply Voltage (DC) | 900 V |
| Voltage Rating (DC) | 900 V |
| Operating Voltage | 900 VDC |
| Current Rating | 100 A |
| Contacts Type | SPST-NO |
| Supply Current | 461 mA |
| Number of Bits | 1 Bit |
| Contact Current Rating | 500 A |
| Coil Voltage | 12 VDC |
| Coil Current | 461 mA |
| Coil Power (DC) | 5.50 W |
| Coil Resistance | 26 Ω |
| Current Rating (Max) | 100 A |
| Coil Voltage (DC) | 12 V |
| Coil Power | 5.5 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 900 VDC |
| Voltage Rating (DC Max) | 900 V |
| Show | |
| Size-Height | 58.0 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490075 |
| ECCN Code | EAR99 |
