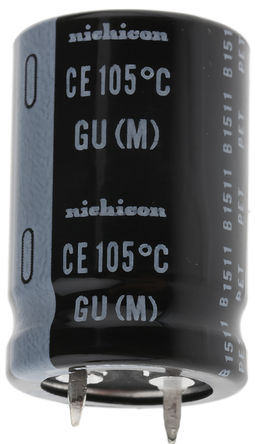

Image is for your reference only,please check specifications for details
Updated at 16/07/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:
- **
- * Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**
- **
- * Compliant to the RoHS directive (2002/95/EC)**
- ** **Specifications:
- **
- * Temperature Range: –40°C to +105°C**
- **
- * Rated Voltage Range: 16-450 V**
- **
- * Rated Capacitance Range: 47 to 47000 μF**
- **
- * Capacitance Tolerance: ±20% at 120 Hz, 20°C
LGU2G680MELY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Snap-In |
| Voltage Rating (DC) | 400 V |
| Operating Voltage | 400 VDC |
| Capacitance | 68 µF |
| Capacitance Tolerance | ±20 % |
| Part Family | LGU |
| Ripple Current | 560 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 400 V |
| Show | |
| Size-Length | 30 mm |
| Size-Height | 30 mm |
| Size-Diameter | 20.0 mm |
| Dielectric Material | Aluminum Electrolytic |
| Operating Temperature | -25℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| Minimum Packing Quantity | 50 |
| Life (Hours) | 3000 h |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
