LM258DGKR TI - Operational Amplifier, OP Amp IC

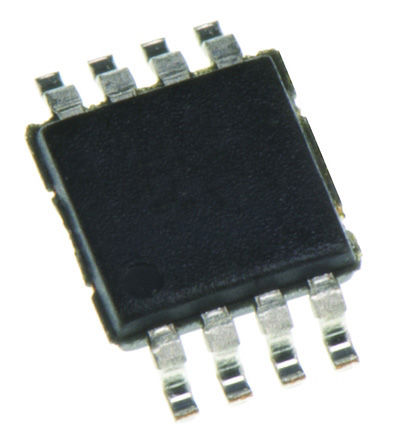

Image is for your reference only,please check specifications for details

LM258DGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3452261
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Операционный усилитель, сдвоенный, 700 кГц, 2 канала, 0.3 В/мкс, от 3 до 32 В, от 1.5 до 16 В, MSOP, 8
Stock Locations:
Availability:
2,774 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 28/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

LM258DGKR — это сдвоенный операционный усилитель с высоким коэффициентом усиления и частотной компенсацией, предназначенный для работы от одного источника питания или от двухполярного источника в широком диапазоне напряжений.
Диапазон синфазного входного напряжения включает землю, что позволяет выполнять непосредственное измерение вблизи земли.
Внутренняя частотная компенсация
Типовой низкий потребляемый ток 0,7 мА
Типовое входное напряжение смещения 3 мВ
Типовой входной ток сдвига 2 нА
Типовой входной ток 20 нА
Диапазон дифференциального входного напряжения 32 В, равный максимальному допустимому напряжению питания
Типовой коэффициент усиления по напряжению при разомкнутой петле обратной связи 100 дБ
Экологичный продукт, не содержащий Sb/Br

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Output Current	30mA @15V
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70dB ~ 80dB
Input Offset Drift	7.00 µV/K
Bandwidth	700 kHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	700 kHz
Input Offset Voltage	3 mV
Input Bias Current	20 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Gain Bandwidth	0.7 MHz
Minimum CMRR Range	70 dB
Supply Voltage	3V ~ 30V
Supply Voltage (Max)	32 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
