Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

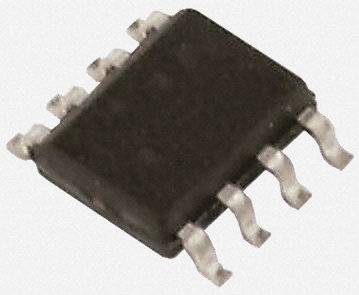

Case/Package | SOIC-8 |
Supply Voltage (DC) | 32.0 V |
Output Current | 60 mA |
Supply Current | 700 µA |
Number of Circuits | 2 Circuit |
Number of Channels | 2 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 85 dB |
Bandwidth | 1.1 MHz |
Slew Rate | 600 mV/μs |
Gain Bandwidth Product | 1.1 MHz |
Input Offset Voltage | 1 mV |
Input Bias Current | 20 nA |
Operating Temperature (Max) | 105 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 1.1 MHz |
Minimum CMRR Range | 70 dB |
Supply Voltage | 3V ~ 30V |
Show | |
Size-Length | 4.9 mm |
Size-Width | 3.9 mm |
Size-Height | 1.65 mm |
Operating Temperature | -40℃ ~ 105℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
