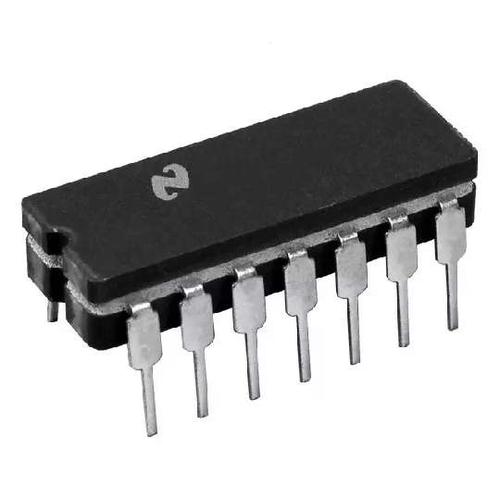

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 4 Circuit 14-CDIP
LM324J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | CDIP-14 |
| Output Current | 40mA @15V |
| Supply Current | 1.5 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Power Dissipation | 1.26 W |
| Common Mode Rejection Ratio | 65 dB |
| Input Offset Drift | 7.00 µV/K |
| Slew Rate | 500 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 45 nA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 1 MHz |
| Power Dissipation (Max) | 1260 mW |
| Minimum CMRR Range | 65 dB |
| Supply Voltage (Max) | 32 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
