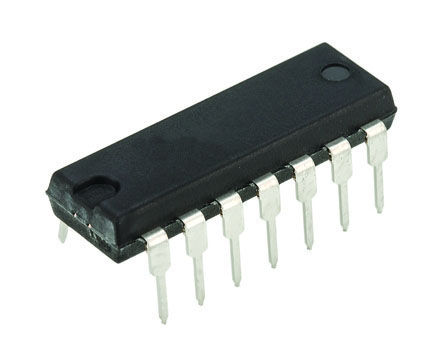

Image is for your reference only,please check specifications for details

LM3302N - TI
Manufacturer:
TI
ManyChip's Part#:
MC10055275
Category:
Comparator, Analog Comparator IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM3302N Analog Comparator, Quad, Differential, 4, 300ns, 2V to 28V, DIP, 14Pins
Stock Locations:
Availability:
397 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM3302N is a quad general purpose Linear Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies is also possible as long as the difference between the two supplies is 2 to 28V and VCC is a least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Single supply or dual supplies
Wide range of supply voltage
Low supply-current drain independent of supply voltage
Low input bias current
Low input offset current
Low input offset voltage
Common-mode input voltage range includes ground
Differential input voltage range equal to maximum-rated supply voltage
Low output saturation voltage
Output compatible with TTL, MOS and CMOS
Green product

Show

LM3302N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	2.00V (min)
Output Current	20 mA
Supply Current	0.8 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	1050 mW
Quiescent Current	800 µA
Input Offset Voltage	20 mV
Input Bias Current	500 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1050 mW
Supply Voltage	2V ~ 28V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	2 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
