Description
- DESCRIPTION
- The LM236 and LM336 are precision 2.5V regulator diodes. These voltage reference monolithic ICs operate like 2.5V zener diodes with a low temperature coefficient and a dynamic impedance of 0.2Ω. A third pin enables adjusting the reference
- voltage and the temperature coefficient.
- ■ LOW TEMPERATURE COEFFICIENT
- ■ WIDE OPERATING CURRENT OF 400µA TO 10mA
- ■ 0.2Ω DYNAMIC IMPEDANCE
- ■ GUARANTEED TEMPERATURE STABILITY
- ■ FAST TURN-ON

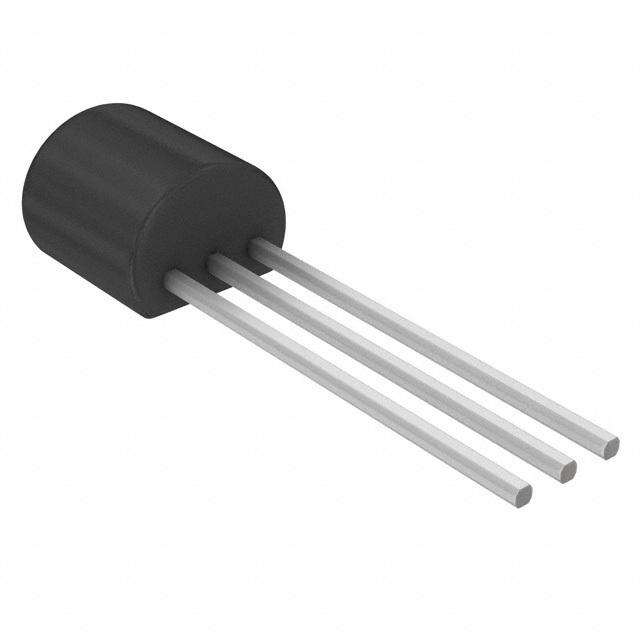

LM336Z Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Capacitance Tolerance | ±4.02 % |
| Input Voltage (DC) | 2.50 V |
| Output Voltage | 2.49 V |
| Output Current | 10 mA |
| Supply Current | 10.0 mA |
| Number of Channels | 1 Channel |
| Output Voltage (Max) | 2.49 V |
| Output Voltage (Min) | 2.49 V |
| Output Current (Max) | 10 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | 10 mV |
| Input Voltage | 2.5 V |
| Show | |
| Size-Length | 4.95 mm |
| Size-Width | 3.94 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Temperature Coefficient | ±20 ppm/℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
