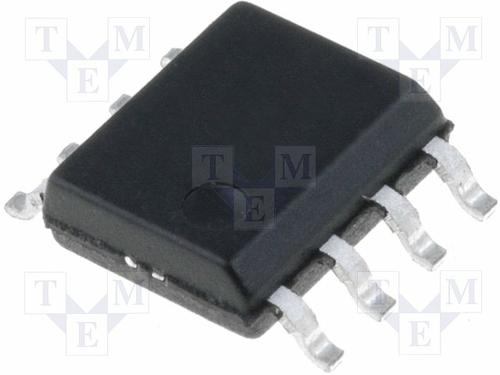

Image is for your reference only,please check specifications for details

LM7321MA - TI
Manufacturer:
TI
ManyChip's Part#:
MC44367146
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM7321MA Operational Amplifier, Single, 1 Amplifier, 20MHz, 18V/µs, 2.5V to 32V, SOIC, 8Pins
Stock Locations:
Availability:
103 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM7321MA is a rail-to-rail input-output single channel high output current and unlimited capacitive load ±15V Operational Amplifier with wide operating voltages and high-output currents. The LM732 family is efficient, achieving 18V/µs slew rate and 20MHz unity gain bandwidth while requiring only 1mA of supply current per op-amp. The device is designed to drive unlimited capacitive loads without oscillations. All the parts of op-amp are tested at -40, 125 and 25°C with modern automatic test equipment. Greater than rail-to-rail input common-mode voltage range with 50dB of common-mode rejection across this wide voltage range, allows both high-side and low-side sensing. Most device parameters are insensitive to power supply voltage and this makes the parts easier to use where supply voltage may vary, this amplifier has true rail-to-rail output and can supply a respectable amount of current with minimal head-room from either rail (300mV) at low distortion (0.05% THD+Noise).
Capacitive load tolerance unlimited
Input common-mode voltage 0.3V beyond rails
15nV/√Hz Input voltage noise
1.3pA/√Hz Input current noise
1.1mA Supply current/channel
Automotive grade product that is AEC-Q100 grade 1 qualified
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LM7321MA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC
Operating Voltage	2.5V ~ 32V
Output Current	60.0 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Bandwidth	20 MHz
Slew Rate	18.0 V/μs
Gain Bandwidth Product	16 MHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	65 dB
Supply Voltage	2.5V ~ 32V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
