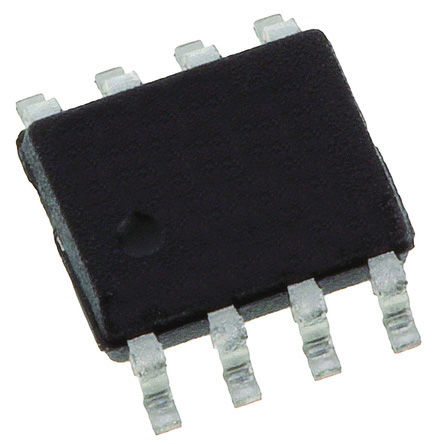

Image is for your reference only,please check specifications for details

LMP7732MA - TI
Manufacturer:
TI
ManyChip's Part#:
MC124244248
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMP7732MA Operational Amplifier, Dual, 2 Amplifier, 22MHz, 2.4V/µs, 1.8V to 5.5V, SOIC, 8Pins
Stock Locations:
Availability:
882 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.47

Updated at 07/04/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMP7732MA is a dual low noise Operational Amplifier with rail-to-rail input and output. The LMP7732 is part of the LMP amplifier family and is ideal for precision and low noise applications with low voltage requirements. The LMP7732 has bipolar junction input stages with a bias current of only 1.5nA. This low input bias current, complemented by the very low level of voltage noise, makes the LMP7732 an excellent choice for photometry applications. The LMP7732 provides a wide GBW of 22MHz while consuming only 4mA of current. This high gain bandwidth along with the high open loop gain of 130dB enables accurate signal conditioning in applications with high closed loop gain requirements. The LMP7732 has a supply voltage range of 1.8 to 5.5V, making it an ideal choice for battery operated portable applications.
130dB CMRR
130dB Open loop gain
0.001% at f=10kHz, AV=+1, RL=2kR THD
4.4mA/channel Supply current
±1.5nA Input bias current
Green product and no Sb/Br

Show

LMP7732MA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC
Output Current	47.0 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Bandwidth	22 MHz
Slew Rate	2.40 V/μs
Gain Bandwidth Product	22 MHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	21 MHz
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
	Show
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
