Description

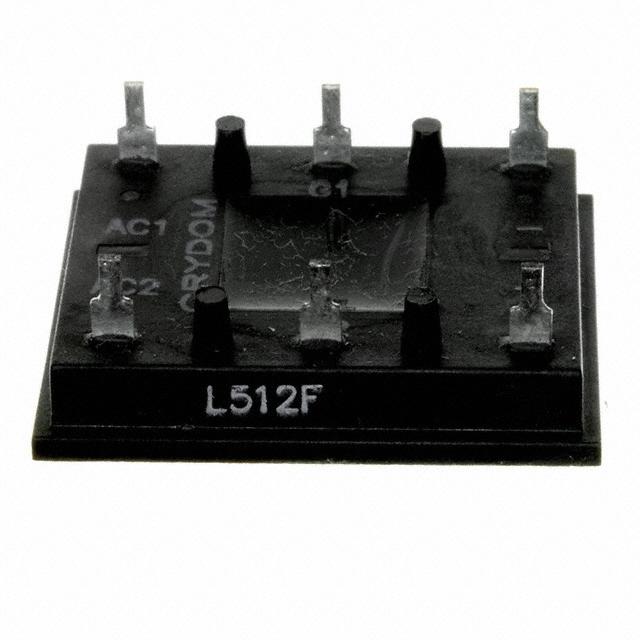

The L512F is a 6-pin PCB mount SCR/Diode Power Module features low profile. Designed for printed circuit board connections. Free wheeling diode included.
25A Load current
240VAC Line voltage
0.5W Average gate power
5V Maximum peak reverse gate voltage
2500Vrms Isolation voltage
Risk of material damage and hot enclosure. Side panels may be hot, allow the product to cool before touching. Follow proper mounting instructions including torque values.

Show

L512F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Voltage Rating (DC)	600 V
Current Rating	25.0 A
Output Current	25.0 A
Forward Voltage	1.65 V
Thermal Resistance	0.9℃/W (RθJC)
Forward Current	25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	125 ℃
	Show
Size-Length	35 mm
Size-Height	12.7 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
HTS Code	8541300080
ECCN Code	EAR99
