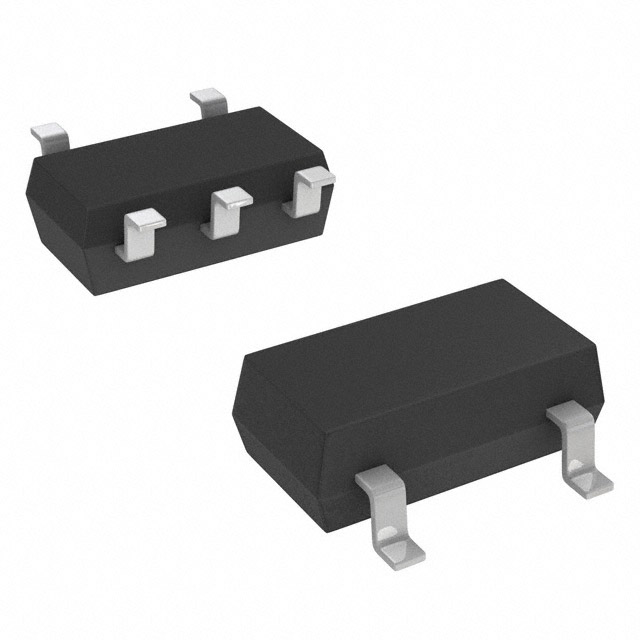

Image is for your reference only,please check specifications for details
- LMV321LICT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC5432907
-
Category:Operational Amplifier, OP Amp IC
-
Package:SC-70-5
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifiers - Op Amps 1.3MHz LP Gen Op-Amp 250uA at 5V 7mV 25c
-
Stock Locations:
-
Availability:250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.33
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The LMV321L, LMV358L, and LMV324L are single, dual and quad operational amplifiers with rail-to-rail output capabilities. They are specifically designed to operate at low voltages (2.7 V to 5 V) with enhanced performances compared to the industry standard LM3xx series. The LMV321L, LMV358L, and LMV324L are offered in tiny packages, allowing the devices to
- be used in small portable electronic applications and to be placed closer to the actual signal.
- Features
- • Low-power consumption: 250 µA max at 5 V
- • Low offset voltage: 7 mV max at 25 °C
- • Industrial temperature range: -40 °C to +125 °C
- • Low supply voltage: 2.7 V - 5.5 V
- • Gain bandwidth product: 1.3 MHz
- • Tiny packages
- Applications
- • Battery-powered applications
- • Portable devices
- • Signal conditioning
- • Active filtering
- • Medical instrumentation
LMV321LICT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Output Current | 70 mA |
| Supply Current | 130 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Common Mode Rejection Ratio | 72 dB |
| Bandwidth | 1.3 MHz |
| Gain Bandwidth Product | 1.3 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 27 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1.3 MHz |
| Minimum CMRR Range | 72 dB |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
