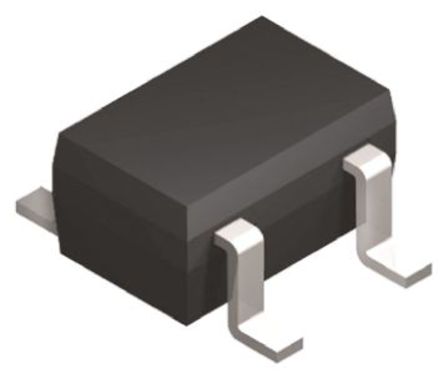

Image is for your reference only,please check specifications for details

LMV321SQ3T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6338733
Category:
Operational Amplifier, OP Amp IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR LMV321SQ3T2G Operational Amplifier, Single, 1 Amplifier, 1MHz, 1V/µs, 2.7V to 5.5V, SOT-353, 5Pins
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMV321, LMV358, and LMV324 are CMOS single, dual, and quad low voltage operational amplifiers with rail−to−rail output swing. These amplifiers are a cost−effective solution for applications where low power consumption and space saving packages are critical. Specification tables are provided for operation from power supply voltages at 2.7 V and 5 V. Rail−to−Rail operation provides improved signal−to−noise preformance. Ultra low quiescent current makes this series of amplifiers ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements. The ultra small packages allow for placement on the PCB in close proximity to the signal source thereby reducing noise pickup.
Features
• Operation from 2.7 V to 5.0 V Single−Sided Power Supply
• LMV321 Single Available in Ultra Small 5 Pin SC70 Package
• No Output Crossover Distortion
• Industrial temperature Range: −40°C to +85°C
• Rail−to−Rail Output
• Low Quiescent Current: LMV358 Dual − 220 A, Max per Channel
• No Output Phase−Reversal from Overdriven Input
• These are Pb−Free Devices
Typical Applications
• Notebook Computers and PDA’s
• Portable Battery−Operated Instruments
• Active Filters

Show

LMV321SQ3T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Halogen Free Status	Halogen Free
Output Current	160 mA
Supply Current	130 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	65 dB
Bandwidth	1 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	1.7 mV
Input Bias Current	1 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	50 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
