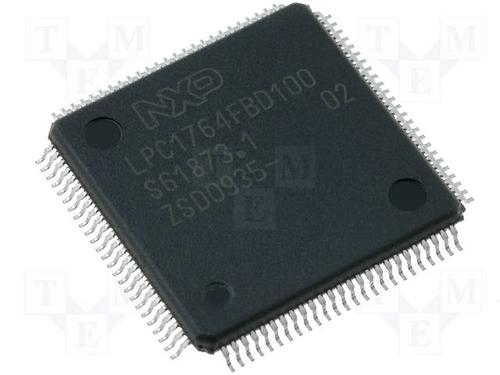

Image is for your reference only,please check specifications for details

LPC1764FBD100 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC17294996
Category:
32-Bit Microcontroller IC
Package:
LQFP
Datasheet:
Datasheet 3D Model
Description:
NXP LPC1764FBD100 32Bit Microcontroller, ARM Cortex-M3, 100MHz, 128KB, 32KB, 100Pins, LQFP
Stock Locations:
Availability:
107 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.74

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The LPC1764 is a Cortex-M3 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 100 MHz. Features include 128 kB of flash memory, 32 kB of data memory, Ethernet MAC, USB Device, 8-channel DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, 8-channel 12-bit ADC, motor control PWM, Quadrature Encoder interface, 4 general purpose timers, 6-output general purpose PWM, ultra-low power Real-Time Clock with separate battery supply, and up to 70 general purpose I/O pins. The LPC1764 is pin-compatible to the 100-pin LPC2368 ARM7 MCU
MoreLess
## Features
* ARM Cortex-M3 processor, running at frequencies of up to 100 MHz
* ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
* Up to 128 kB on-chip flash programming memory
* Up to 32 kB On-chip SRAM
* In-System Programming (ISP) and In-Application Programming (IAP)
* Eight channel General Purpose DMA controller (GPDMA)
* Ethernet MAC with RMII interface and dedicated DMA controller
* USB 2.0 full-speed device/Host/OTG controller
* Four UARTs with fractional baud rate generation, internal FIFO, and DMA support
* CAN 2.0B controller with two channels
* SPI controller with synchronous, serial, full duplex communication
* Two SSP controllers with FIFO and multi-protocol capabilities
* Three enhanced I2C bus interfaces
* 70 General Purpose I/O (GPIO) pins with configurable pull-up/down resistors
* 12-bit/8-ch Analog/Digital Converter (ADC) with conversion rates up to 200 kHz
* Four general purpose timers/counters
* One motor control PWM with support for three-phase motor control
* Quadrature encoder interface that can monitor one external quadrature encoder
* One standard PWM/timer block with external count input
* Low power RTC with a separate power domain and dedicated oscillator
* WatchDog Timer (WDT)
* ARM Cortex-M3 system tick timer, including an external clock input option
* Repetitive interrupt timer provides programmable and repeating timed interrupts
* Each peripheral has its own clock divider for further power savings
* Standard JTAG test/debug interface for compatibility with existing tools
* Integrated PMU (Power Management Unit)
* Four reduced power modes: Sleep, Deep-sleep, Power-down, and Deep power-down
* Single 3.3 V power supply (2.4 V to 3.6 V)
* Four external interrupt inputs configurable as edge/level sensitive
* Non-maskable Interrupt (NMI) input
* Wake-up Interrupt Controller (WIC)
* Processor wake-up from Power-down mode via any interrupt
* Brownout detect with separate threshold for interrupt and forced reset
* Power-On Reset (POR)
* Crystal oscillator with an operating range of 1 MHz to 25 MHz
* 4 MHz internal RC oscillator trimmed to 1 % accuracy
* Code Read Protection (CRP) with different security levels
* Unique device serial number for identification purposes
## Target Applications
* eMetering
* Lighting
* Industrial networking
* Alarm systems
* White goods
* Motor control
## Features

Show

LPC1764FBD100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP
Supply Voltage (DC)	2.40V (min)
Operating Voltage	2.4V ~ 3.6V
Clock Speed	100 MHz
RAM Memory Size	32 KB
Number of Bits	32 Bit
FLASH Memory Size	128 kB
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.4 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Order guide

Payment Shipping Package Order Quality Assurance

TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- Carefully inspected and packed by ManyChip warehouse
- Vacuum packaging
- Anti-static packaging
- Shockproof foam
The terms here are for reference only, the actual terms are subject to the sales quotation.
- Please confirm product specifications when ordering.
- MOQ refers to the minimum order quantity required to purchase each part.
- If you have special ordering instructions, please indicate them on the ordering page.
- Inspection (PSI) will be performed prior to shipment.
- Income Quality Control (IQC), 1000+ qualified dealers.
- Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device.
- Decapsulation control
- X-ray control
- XRF inspection
- Electrical testing
- Surface testing
