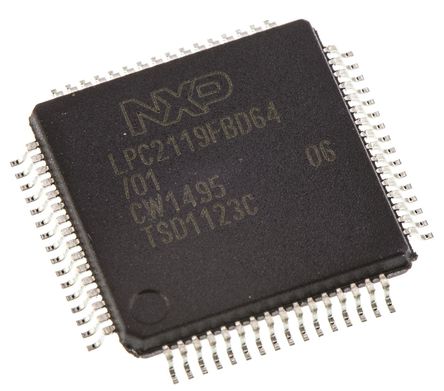

- LPC2119FBD64 - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC96204070
-
Category:Microcontroller, MCU IC
-
Package:LQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit/32Bit LPC2000 ARM7TDMI-S RISC 128KB Flash 1.8V/3.3V 64Pin LQFP Tray
-
Stock Locations:
-
Availability:77 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 12.08
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LPC2119FBD64 is a 16-/32-bit Microcontroller based on ARM7TDMI-S CPU with real-time emulation and embedded trace support. A 128-bit wide memory interface and an unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. The device incorporates 128kB embedded high speed flash, 16kB on-chip SRAM, various 32-bit timers, 4-channel 10-bit ADC, two advanced CAN channels, PWM channels and 46 general-purpose I/O pins.
- In-system programming (ISP) and In-application programming (IAP)
- EmbeddedICE-RT interface enables breakpoints and watch points
- Embedded trace macrocell enables non-intrusive high speed real-time tracing of instruction execution
- Multiple serial interfaces including two UARTs (16C550), fast I2C-bus (400 Kbit/s) and SPI
- 60MHz Maximum CPU clock available from programmable on-chip phase-locked loop
- Vectored interrupt controller with configurable priorities and vector addresses
- Two 32-bit timers, PWM unit, RTC and watchdog
- Up to forty-six 5V tolerant general purpose I/O pins
- On-chip crystal oscillator with an operating range of 1MHz to 30MHz
- Two low power modes, Idle and power-down
- Processor wake-up from power-down mode via external interrupt
- Individual enable/disable of peripheral functions for power optimization
- Fast GPIO port enables port pin toggling up to 3.5 times faster than the original device
- Dedicated result registers for ADC reduce interrupt overhead
- UART 0/1 include fractional baud rate generator, autobauding capabilities & handshake flow-control
- Buffered SSP serial controller supporting SPI, 4-wire SSI and microwire formats
- SPI programmable data length and master mode enhancement
- Diversified code read protection (CRP)
- General purpose timers can operate as external event counters
LPC2119FBD64 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | LQFP-64 |
| Supply Voltage (DC) | 1.65V (min) |
| Number of Positions | 64 Position |
| Clock Speed | 60.0 MHz |
| RAM Memory Size | 16 KB |
| Number of Bits | 32 Bit |
| FLASH Memory Size | 128 KB |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 46 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 1.95 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 10.1 mm |
| Size-Width | 10.1 mm |
| Size-Height | 1.45 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
