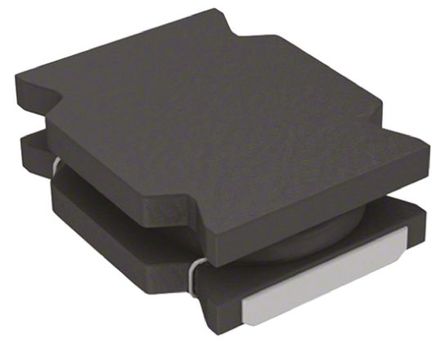

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 33µH Unshielded Wirewound Inductor 160mA 3.64Ohm Max 0806 (2016 Metric)
LQH2MCN330K02L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 0806 |
| Current Rating | 160 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 33 µH |
| Self Resonant Frequency | 28 MHz |
| Part Family | LQH |
| Resistance | 2.80 Ω |
| Resistance Tolerance | ±30 % |
| Resonant Frequency | 28.0 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤3.64 Ω |
| Current Rating (DC) | 160 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 2.8 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
| ECCN Code | EAR99 |
