Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 8 Pin |

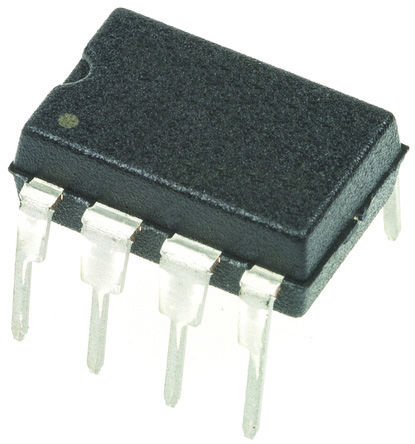

Case/Package | PDIP-8 |
Supply Voltage (DC) | 44.0V (max) |
Supply Current | 350 µA |
Number of Circuits | 2 Circuit |
Number of Channels | 2 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 97 dB |
Input Offset Drift | 500 nV/K |
Bandwidth | 1 MHz |
Slew Rate | 400 mV/μs |
Gain Bandwidth Product | 1 MHz |
Input Offset Voltage | 60 µV |
Input Bias Current | 15 nA |
Operating Temperature (Max) | 70 ℃ |
Operating Temperature (Min) | 0 ℃ |
Gain Bandwidth | 1 MHz |
Minimum CMRR Range | 97 dB |
Supply Voltage | 4V ~ 44V |
Supply Voltage (Max) | 44 V |
Supply Voltage (Min) | 4 V |
Show | |
Size-Length | 9.81 mm |
Size-Width | 6.35 mm |
Size-Height | 4.57 mm |
Operating Temperature | 0℃ ~ 70℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | EAR99 |
