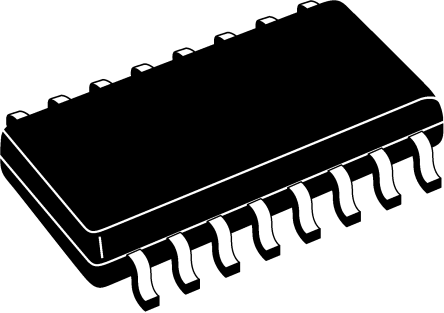

Image is for your reference only,please check specifications for details

LT1014DDW - TI
Manufacturer:
TI
ManyChip's Part#:
MC29581033
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LT1014DDW Operational Amplifier, Quad, 4 Amplifier, 1MHz, 0.4V/µs, 5V to 44V, SOIC, 16Pins
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LT1014DDW is a quad precision Operational Amplifier with 14-pin industry-standard configuration. It features low offset-voltage temperature coefficient, high gain, low supply current and low noise. The common-mode input voltage range includes ground and the output voltage can also swing to within a few millivolts of ground. Crossover distortion is eliminated. It is characterized for operation from 0 to 70°C.
300µV at 25°C Maximum input offset voltage
2.5µV/°C Maximum offset voltage temperature coefficient
1.5nA at 25°C Maximum input offset current
2.2mA at 25°C Maximum low supply current
0.55µV Typical low peak-to-peak noise voltage
0.07pA/Hz Typical low current noise
Green product and no Sb/Br

Show

LT1014DDW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Current	350 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	1.025 W
Common Mode Rejection Ratio	97 dB
Input Offset Drift	500 nV/K
Bandwidth	1 MHz
Slew Rate	400 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	200 µV
Input Bias Current	12 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1 MHz
Power Dissipation (Max)	1025 mW
Minimum CMRR Range	97 dB
Supply Voltage	5V ~ 44V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
