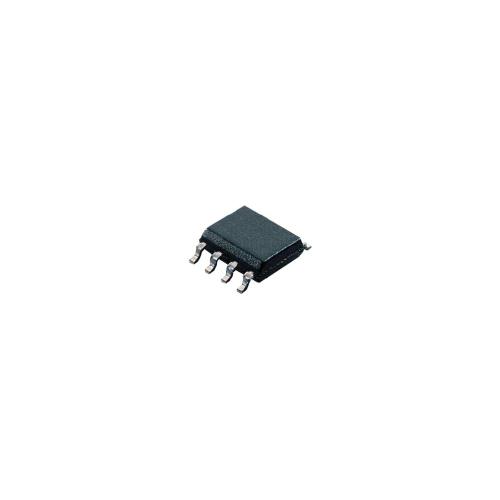

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The LT® 1357 is a high speed, very high slew rate operational amplifier with outstanding AC and DC performance. The LT1357 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth. The circuit
topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500Ωload to ±12V with ±15V supplies and a 150Ω load to ±2.5V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.
FEATURES
■ 25MHz Gain Bandwidth
■ 600V/µs Slew Rate
■ 2.5mA Maximum Supply Current
■ Unity-Gain Stable
■ C-Load
TM
Op Amp Drives All Capacitive Loads
■ 8nV/√Hz Input Noise Voltage
■ 600µV Maximum Input Offset Voltage
■ 500nA Maximum Input Bias Current
■ 120nA Maximum Input Offset Current
■ 20V/mV Minimum DC Gain, RL=1k
■ 115ns Settling Time to 0.1%, 10V Step
■ 220ns Settling Time to 0.01%, 10V Step
■ ±12V Minimum Output Swing into 500Ω
■ ±2.5V Minimum Output Swing into 150Ω
■ Specified at ±2.5V, ±5V, and ±15V
APPLICATIONS
■ Wideband Amplifiers
■ Buffers
■ Active Filters
■ Data Acquisition Systems
■ Photodiode Amplifiers

Show
