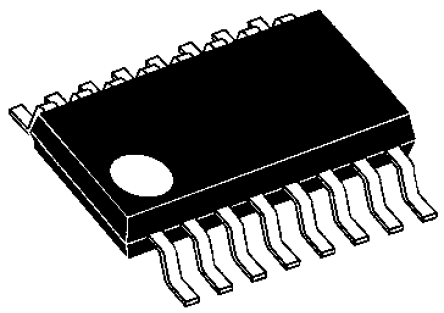

Image is for your reference only,please check specifications for details

MAX1672EEE+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC45983446
Category:
DC to DC Converter
Package:
QSOP-16
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 11V 16Pin QSOP
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Buck, Boost Switching Regulator IC Positive Adjustable (Programmable) 1.25V (3.3V, 5.5V) 1 Output 300mA 16-SSOP (0.154", 3.90mm Width)

Show

MAX1672EEE+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QSOP-16
Power Rating	667 mW
Number of Outputs	1 Output
Output Voltage	1.25.5.5 V
Output Current	200 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Input Voltage (Max)	11 V
Input Voltage (Min)	1.8 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.25 V
Output Current (Max)	300 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8 V
Supply Voltage (Max)	11 V
Supply Voltage (Min)	1.8 V
Input Voltage	1.8V ~ 11V
	Show
Size-Length	4.98 mm
Size-Width	3.99 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
