MAX1951 - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC481508332
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
1MHz, All-Ceramic, 2.6V to 5.5V Input, 2A PWM Step-Down DC-to-DC Regulators1MHz, All-Ceramic, 2.6V to 5.5V Input, 2A PWM Step-Down DC-DC Regulators Require Only 10μF Ceramic Capacitor
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 18/06/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description

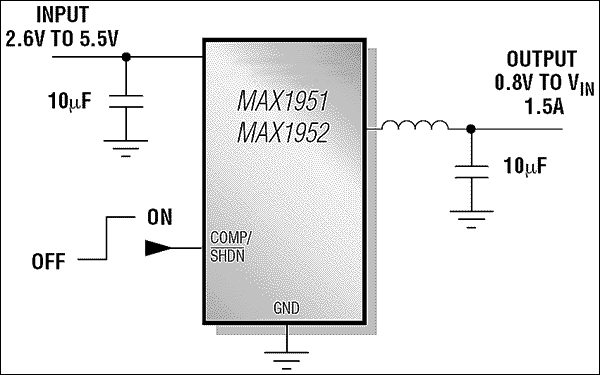

The MAX1951/MAX1952 high-efficiency, DC-to-DC step-down switching regulators deliver up to 2A of output current. The devices operate from an input voltage range of 2.6V to 5.5V and provide an output voltage from 0.8V to VIN, making the MAX1951/MAX1952 ideal for on-board postregulation applications. The MAX1951 total output error is less than 1% over load, line, and temperature.
The MAX1951/MAX1952 operate at a fixed frequency of 1MHz with an efficiency of up to 94%. The high operating frequency minimizes the size of external components. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protection improve design reliability.
The MAX1951 provides an adjustable output from 0.8V to VIN, whereas the MAX1952 has a preset output of 1.8V. Both devices are available in a space-saving 8-pin SO package.
