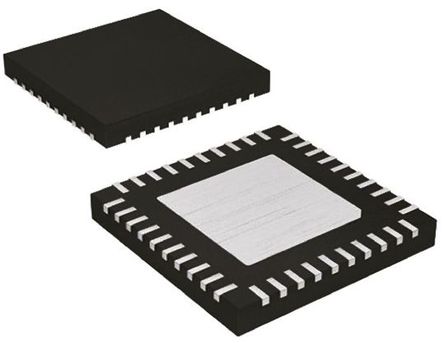

Image is for your reference only,please check specifications for details

MAX8686ETL+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC41211528
Category:
DC to DC Converter
Package:
TQFN-40
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 20V Step Down Single-Out 0V to 18V 25A 40Pin TQFN
Stock Locations:
Availability:
59 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.99

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 25A 40-WFQFN Exposed Pad

Show

MAX8686ETL+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	TQFN-40
Frequency	1 MHz
Number of Outputs	1 Output
Output Voltage	0V ~ 18V
Output Current	25 A
Number of Positions	40 Position
Switching Frequency	1.2 MHz
Input Voltage (Max)	20 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	700 mV
Output Current (Max)	25 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 20V
	Show
Size-Length	6.1 mm
Size-Width	6.1 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
