Description

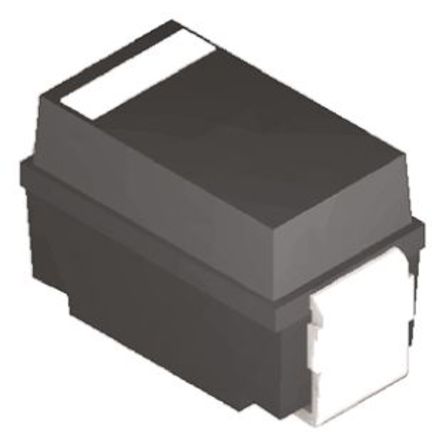

The MBRA320T3G is a surface-mount Schottky Power Rectifier with moulded epoxy case.
Cathode lead indicated by polarity band
All external surfaces corrosion-resistant
Small compact surface mountable package with J-bent leads
Rectangular package for automated handling
Highly stable oxide passivated junction
Very low forward-voltage drop
Guard-ring for stress protection
AEC-Q101 qualified and PPAP capable

Show

MBRA320T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	0.5 V
Thermal Resistance	15℃/W (RθJL)
Max Repetitive Reverse Voltage (Vrrm)	20V
Forward Current	3 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	500 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	4.57 mm
Size-Width	2.92 mm
Size-Height	2 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
