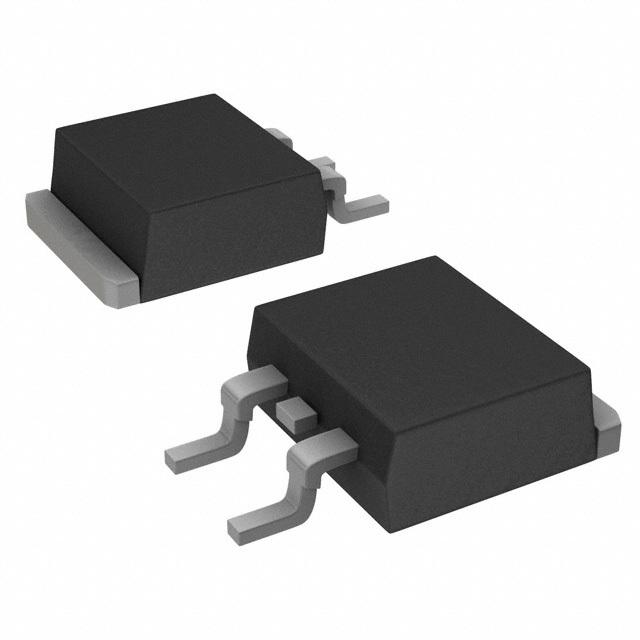

Image is for your reference only,please check specifications for details

MBRB3030CTLG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC13278326
Category:
Schottky Diode
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MBRB3030CTLG Schottky Rectifier, 30V, 30A, Dual Common Cathode, TO-263, 3Pins, 510mV
Stock Locations:
Availability:
306 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.23

Updated at 27/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRB3030CTLG is a SWITCHMODE™ Power Rectifier with moulded epoxy case. This state-of-the-art device employs the use of the Schottky barrier principle with a platinum barrier metal.
All external surfaces corrosion-resistant
Dual diode construction, may be paralleled for higher current output
Guard-ring for stress protection
Low forward voltage drop
Maximum die size
Short heat-sink tap manufactured - Not sheared
AEC-Q101 qualified and PPAP capable

Show

MBRB3030CTLG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	30.0 V
Current Rating	30.0 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	0.51 V
Forward Current	30 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	510 mV
Forward Current (Max)	30000 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
	Show
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
