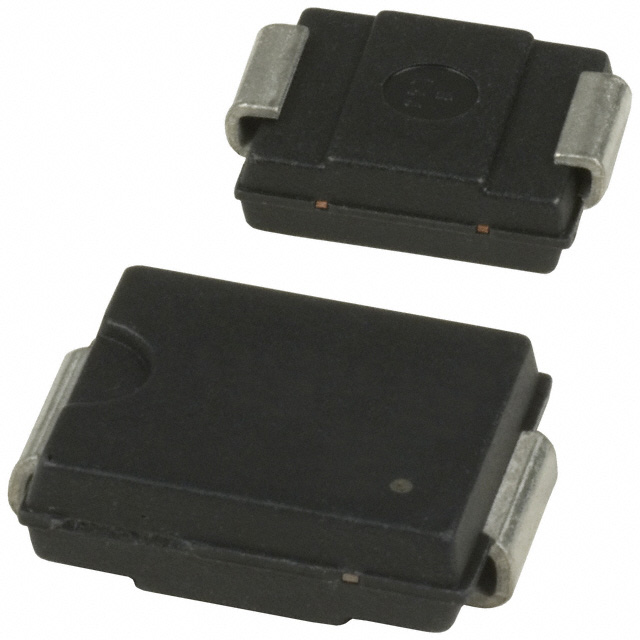

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Surface Mount Schottky Power Rectifier • Pb−Free Package • Small Compact Surface Mountable Package • Rectangular Package for Automated Handling • Highly Stable Oxide Passivated Junction • Excellent Ability to Withstand Reverse Avalanche Energy Transients

Show

MBRS540T3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	40.0 V
Current Rating	5.00 A
Output Current	≤5.00 A
Forward Voltage	0.5 V
Polarity	Standard
Forward Current	5 A
Max Forward Surge Current (Ifsm)	190 A
Forward Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	6.86 mm
Size-Width	5.84 mm
Size-Height	2.13 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
