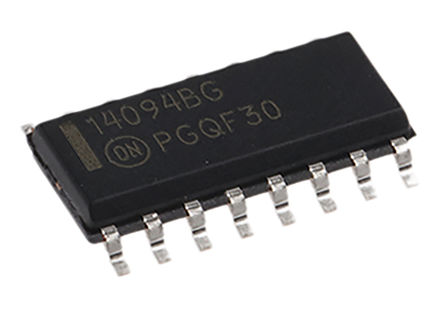

Image is for your reference only,please check specifications for details

MC14094BDG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1879275
Category:
Shift Register IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC14094BDG Shift Register, MC14094, Serial to Parallel, 1Element, 8Bit, SOIC, 16Pins
Stock Locations:
Availability:
427 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC14094BDG is a 8-stage Shift Register with a data latch for each stage and a 3-state output from each latch. Data is shifted on the positive clock transition and is shifted from the seventh stage to two serial outputs. The QS output data is for use in high-speed cascaded systems. The QS output data is shifted on the following negative clock transition for use in low-speed cascaded systems. Data from each stage of the shift register is latched on the negative transition of the strobe input. Data propagates through the latch while strobe is high. Outputs of the eight data latches are controlled by 3-state buffers which are placed in the high-impedance state by a logic low on output enable. It is capable of driving two low-power TTL loads or one low-power Schottky TTL load over the rated temperature range. This device contains protection circuitry to guard against damage due to high static voltages or electric fields.
Input diode protection
Data latch
Dual outputs for data out on both positive and negative clock transitions
Useful for serial-to-parallel data conversion
Pin-for-pin Compatible with CD4094B
Precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit.

Show

MC14094BDG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	6.00 MHz
Supply Voltage (DC)	3.00V (min)
Operating Voltage	3V ~ 18V
Capacitance	7.5 pF
Halogen Free Status	Halogen Free
Number of Outputs	10 Output
Supply Current	600 μA
Number of Circuits	1 Circuit
Number of Positions	16 Position
Number of Bits	8 Bit
Power Dissipation	500 mW
Quiescent Current	20 µA
Number of Gates	1 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
