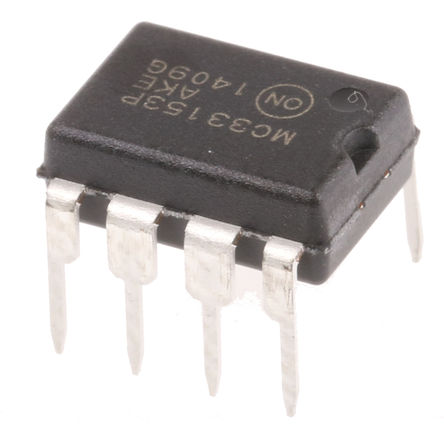

Image is for your reference only,please check specifications for details

MC33153PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8192181
Category:
FET Driver
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
MC Series 1A 20V 100KΩ Through Hole Single IGBT Gate Driver - PDIP-8
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33153PG is a single IGBT Gate Driver specifically designed for high power applications. Although designed for driving discrete and module IGBTs, this device offers bipolar transistors. Device protection features include the choice of de-saturation or over-current sensing and under-voltage detection.
Protection circuits for both conventional and sense IGBTs
Programmable fault blanking time
Protection against over-current and short-circuit
Under-voltage lockout optimized for IGBTs
Negative gate drive capability

Show

MC33153PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	0.00V(min), 15.0V(max)
Rise/Fall Time	17 ns
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	13.9 V
Number of Positions	8 Position
Power Dissipation	1000 mW
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	11.7V ~ 20V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	0 V
	Show
Size-Length	10.02 mm
Size-Width	7.11 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
