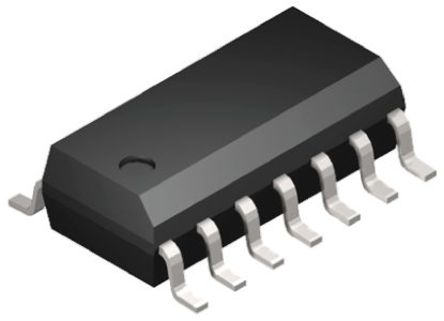

Image is for your reference only,please check specifications for details

MC74HC132ADR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC14443842
Category:
Logic Control, Logic Gate IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
* Output Drive Capability: 10 LSTTL Loads * Outputs Directly Interface to CMOS, NMOS, and TTL * Operating Voltage Range: 2.0 to 6V * Low Input Current: 1mA * High Noise Immunity Characteristic of CMOS Devices * In Compliance with the Requirements Defined by JEDEC Standard No. 7A * Chip Complexity: 72 FETs or 18 Equivalent Gates * Pb-Free Packages are Available*
Stock Locations:
Availability:
1,965 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Quad 2−Input NAND Gatewith Schmitt−Trigger Inputs
High−Performance Silicon−Gate CMOS
The MC74HC132A is identical in pinout to the LS132. The device inputs are compatible with standard CMOS outputs; with pull−up resistors, they are compatible with LSTTL outputs.
The HC132A can be used to enhance noise immunity or to square up slowly changing waveforms.
Features
•Output Drive Capability: 10 LSTTL Loads
•Outputs Directly Interface to CMOS, NMOS, and TTL
•Operating Voltage Range: 2.0 to 6.0 V
•Low Input Current: 1.0 A
•High Noise Immunity Characteristic of CMOS Devices
•In Compliance with the Requirements as Defined by JEDEC Standard No. 7A
•Chip Complexity: 72 FETs or 18 Equivalent Gates
•Pb−Free Packages are Available

Show

MC74HC132ADR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	2.00V (min)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Current	5.2 mA
Number of Circuits	4 Circuit
Number of Positions	14 Position
Number of Gates	4 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
