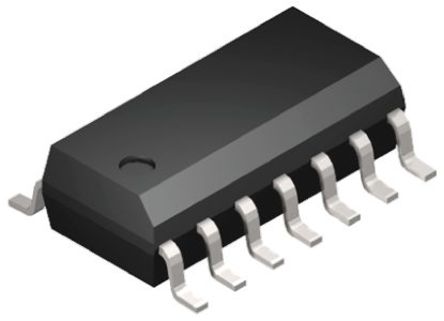

MC74HC164ADG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC10641203
Category:
Shift Register IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
Shift Register, HC Family, 74HC164, Serial to Parallel, 1Element, 8Bit, SOIC, 14Pins
Stock Locations:
Availability:
1,695 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC74HC164ADG is an 8bit serial input/parallel output shift register in 14 pin SOIC package. It is identical in pin-out to the LS164 device. The device inputs are compatible with standard CMOS outputs with pull-up resistors and it is compatible with LSTTL outputs. The MC74HC164ADG is an 8bit, serial input to parallel output shift register. Two serial data inputs (A1 and A2) are provided so that one input may be used as a data enable. Data is entered on each rising edge of the clock. The active-low asynchronous reset overrides the clock and serial data inputs.
High performance silicon gate CMOS technology and high noise immunity characteristic of CMOS devices
10 LSTTL loads output drive capability
Outputs directly interface to CMOS, NMOS and TTL
Operating voltage range from 2V to 6V
Low input current of 1µA
Maximum quiescent supply current (per package) of 4µA at -55°C to 25°C (Vin = VCC or GND, Iout = 0A)
In compliance with JEDEC standard number 7.0 A requirements
244 FETs or 61 equivalent gates chip complexity
Input rise and fall time of 1000ns at VCC = 2V
Operating temperature range from -55°C to 125°C
