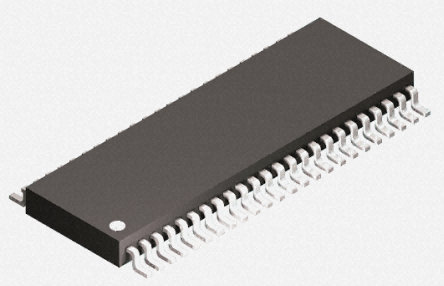

MC74LCX16373DTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC10752671
Category:
Latche IC
Package:
TSSOP-48
Datasheet:
Datasheet 3D Model
Description:
MC74LCX16373DTG 16Bit Latch, Transparent D Type, 3 State, 2 to 3.6V, 48Pin TSSOP
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC74LCX16373DTG is a 16-bit CMOS Transparent Latch operating from a 2.3 to 3.6V supply. The device is byte controlled. Each byte has separate Output Enable and Latch Enable inputs. These control pins can be tied together for full 16-bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX16373 inputs to be safely driven from 5V devices. It contains 16 D-type latches with 3-state 5V-tolerant outputs. When the LE inputs are HIGH, data on the Dn inputs enters the latches. In this condition, the latch is transparent, i.e., a latch output will change state each time its D input changes. When LE is low, the latches store the information that was present on the D inputs a setup time preceding the high-to-low transition of LE. The 3-state outputs are controlled by the OE\ inputs.
Supports live insertion and withdrawal
IOFF Specification guarantees high impedance when VCC = 0V
LVTTL Compatible
LVCMOS Compatible
Near zero static supply current in all three logic states
24mA Balanced output sink and source capability
5V Tolerant - Interface capability with 5V TTL logic

Show

MC74LCX16373DTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSSOP-48
Supply Voltage (DC)	2.00V (min)
Capacitance	20 pF
Halogen Free Status	Halogen Free
Number of Outputs	16 Output
Output Current	24 mA
Number of Circuits	2 Circuit
Number of Channels	16 Channel
Number of Positions	48 Position
Number of Bits	16 Bit
Quiescent Current	20 µA
Number of Inputs	16 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	12.6 mm
Size-Width	6.2 mm
Size-Height	0.95 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
