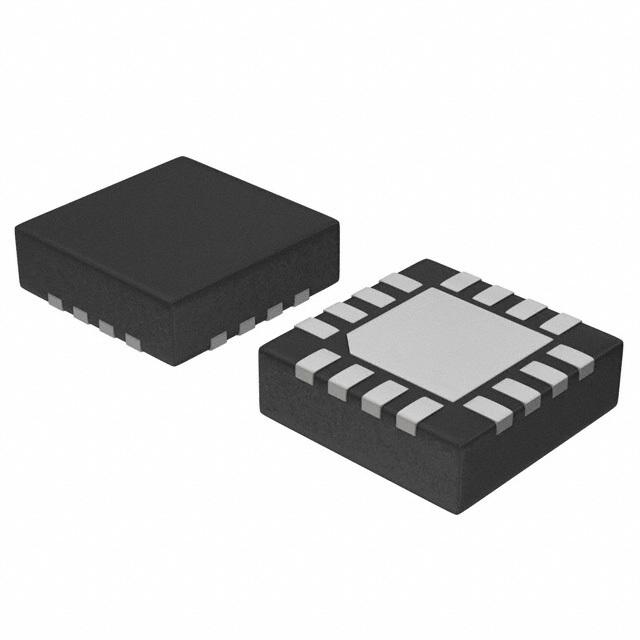

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC74LVX4051 utilizes silicon-gate CMOS technology to achieve fast propagation delays, low ON resistances, and low leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range (from V The LVX4051 is similar in pinout to the LVX8051, HC4051A and the metal-gate MC14051B. The Channel-Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off. The Channel-Select and Enable inputs are compatible with standard CMOS outputs. These inputs are over-voltage tolerant (OVT) forlevel translation from 6.0 V down to 3.0 V. This device has been designed so the ON resistance (R ) is more linear over input voltage than R of metal-gate CMOS analog switches, and High-Speed CMOS analog switches.
Features
---
|
Fast Switching and Propagation Speeds
Low Crosstalk Between Switches
Analog Power Supply Range (VCC \- VEE ) = -3.0 V to +3.0 V
Digital (Control) Power Supply Range (VCC \- GND) = 2.5 to 6.0 V
Improved Linearity and Lower ON Resistance Than Metal-Gate, HSL, or VHC Counterparts
Low Noise
Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to +/- 3.3 V
Break-Before-Make Circuitry
Pb-Free Packages are Available*

Show

MC74LVX4051MNTWG Specifications
