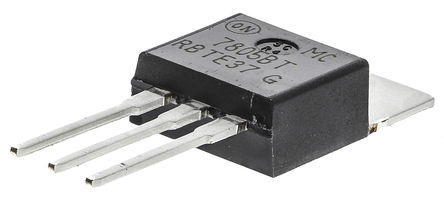

Image is for your reference only,please check specifications for details
- MC7805BTG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC897544
-
Category:Voltage Regulator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:MC7805BTG; Single Linear Voltage Regulator; 1A 5V; +/-4%; 3Pin TO-220
-
Stock Locations:
-
Availability:85 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.71
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC7805BTG is a Positive Linear Voltage Regulator, monolithic Integrated circuit designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. This employs internal current limiting, thermal shutdown and safe-area compensation. With adequate heat-sinking it can deliver output current in excess of 1A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
- No external components required
- Internal thermal overload protection
- Internal short-circuit current limit
- Output voltage offered in 1.5%, 2% and 4% tolerance
- Pb-free device
MC7805BTG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Supply Voltage (DC) | 35.0V (max) |
| Operating Voltage | 8V ~ 20V |
| Current Rating | 1.00 A |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 1 A |
| Supply Current | 8 mA |
| Number of Positions | 3 Position |
| Polarity | P-Channel |
| Quiescent Current | 3.2 mA |
| voltage rating | 2V @1A |
| Thermal Resistance | 5℃/W (RθJC) |
| Input Voltage (Max) | 35 V |
| Input Voltage (Min) | 10 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±4 % |
| Number of Output Channels | 1 Channel |
| Supply Voltage | 35 V |
| Input Voltage | 35 V |
| Show | |
| Size-Length | 10.28 mm |
| Size-Width | 4.82 mm |
| Size-Height | 30.02 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
