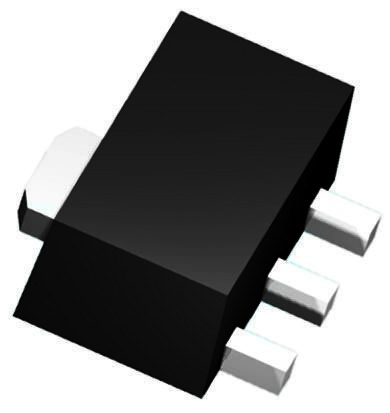

MC78FC30HT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC41869126
Category:
Voltage Regulator
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC78FC30HT1G Fixed LDO Voltage Regulator, 2V to 10V In, 500mV Dropout, 3V/80mA Out, SOT-89-3
Stock Locations:
Availability:
456 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.56

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Micropower Voltage Regulator
The MC78FC00 series voltage regulators are specifically designed for use as a power source for video instruments, handheld
communication equipment, and battery powered equipment.
The MC78FC00 series voltage regulator ICs feature a high accuracy output voltage and ultra?low quiescent current. Each device contains a voltage reference unit, an error amplifier, a driver transistor, and resistors for setting output voltage, and a current limit circuit. These devices are available in SOT?89 surface mount packages, and allow construction of an efficient, constant voltage power supply circuit.
Features
? Ultra?Low Quiescent Current of 1.1 A Typical
? Ultra?Low Dropout Voltage (100 mV at 10 mA)
? Large Output Current (up to 120 mA)
? Excellent Line Regulation (0.1%)
? Wide Operating Voltage Range (2.0 V to 10 V)
? High Accuracy Output Voltage (±2.5%)
? Wide Output Voltage Range (2.0 V to 6.0 V)
? Surface Mount Package (SOT?89)
? These are Pb?Free Devices

Show

MC78FC30HT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Current Rating	80.0 mA
Power Rating	0.9 W
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	50 mA
Supply Current	3.3 µA
Polarity	P-Channel
Power Dissipation	0.3 W
Quiescent Current	0.0011 mA
voltage rating	500 mV
Input Voltage (Max)	10 V
Input Voltage (Min)	2 V
Output Voltage (Min)	3 V
Output Current (Max)	80 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	300 mW
Accuracy	±2.5 %
Input Voltage	≤10 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Operating Temperature	-30℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
