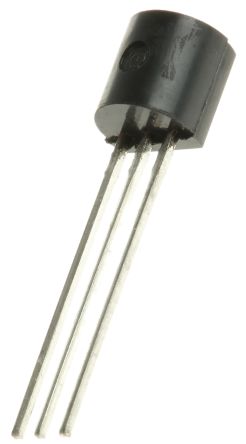

Image is for your reference only,please check specifications for details

MC78L05ABPG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC7446339
Category:
Voltage Regulator
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, 7805, Fixed, Positive Voltage, 10V To 30V In, 5V And 0.1A Out, TO-92-3
Stock Locations:
Availability:
750 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC78L05ABPG is an inexpensive easy-to-use Positive Voltage Regulator with 5V output voltage. It is suitable for a multitude of applications that require a regulated supply of up to 100mA. Like its higher powered, this regulator features internal current limiting and thermal shutdown making it remarkably rugged. This device offers a substantial performance advantage over the traditional Zener diode-resistor combination, as output impedance and quiescent current are substantially reduced.
No external components required

Show

MC78L05ABPG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Current Rating	100 mA
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	30.0V (max)
Output Voltage	5 V
Output Current	100 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	3.8 mA
voltage rating	1.7V @40mA
Input Bias Current	3.8 mA
Input Voltage (Max)	30 V
Input Voltage (Min)	10 V
Output Voltage (Min)	5 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	625 mW
Supply Voltage	30 V
Input Voltage	≤30 V
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
