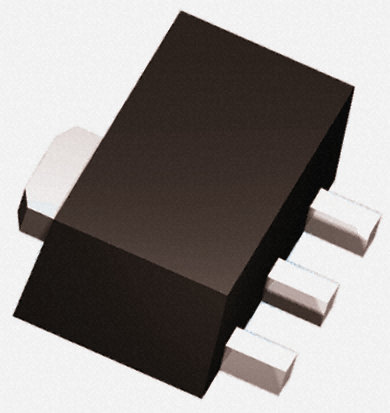

Image is for your reference only,please check specifications for details
- MC79L05ACHX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC15497863
-
Category:Voltage Regulator
-
Package:SOT-89-3
-
Datasheet:Datasheet 3D Model
-
Description:Voltage regulator; linear, fixed; -5V; 0.1A; SOT89; SMD; 0÷125℃
-
Stock Locations:
-
Availability:282 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.1
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- These regulators employ internal current limiting and thermal shutdown.
- Features
- • Output Current up to 100 mA
- • No External Components
- • Internal Thermal Over load Protection
- • Internal Short-Circuit Current Limiting
- • Output Voltage Offered in ±5% Tolerance
- • Output Voltage: -5 V
MC79L05ACHX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-89-3 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | -30.0 V (max) |
| Output Current | 100 mA |
| Quiescent Current | 6 mA |
| voltage rating | 1.7V @40mA |
| Output Current (Max) | 100 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±5 % |
| Show | |
| Size-Length | 4.7 mm |
| Size-Width | 2.7 mm |
| Size-Height | 1.7 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
