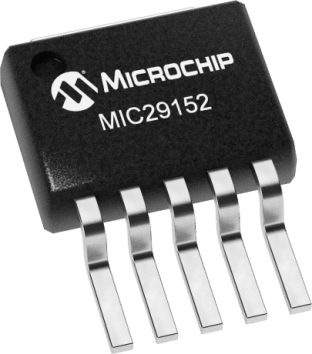

Image is for your reference only,please check specifications for details

MIC29152WU - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC9544230
Category:
Voltage Regulator
Package:
TO-263-5
Datasheet:
Datasheet 3D Model
Description:
LDO Voltage Regulator, Adjustable, 2V to 26V input, 350mV drop., 1.27V to 25V/1.5A out, TO-263-5
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 41.32

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC29152WU is a high current high accuracy low-dropout Voltage Regulator using Micrels proprietary Super βeta PNP® process with a PNP pass element, this regulator features 350 to 425mV dropout voltages and very low ground current. Designed for high current loads, this device also finds applications in lower current, extremely low dropout-critical systems, where its tiny dropout voltage and ground current values are important attributes. It is fully protected against overcurrent faults, reversed input polarity, reversed lead insertion, overtemperature operation and positive and negative transient voltage spikes. Five pin fixed voltage versions feature logic level ON/OFF control and an error flag which signals whenever the output falls out of regulation. Flagged states include low input voltage, output current limit, overtemperature shutdown and extremely high voltage spikes on the input. The ENABLE pin may be tied to VIN if it is not required for ON/OFF control.
Extremely fast transient response
Reverse-battery and load dump protection
Characterized for smaller loads with industry leading performance
Accurate 1% guaranteed tolerance
1.5A High current capability

Show

MIC29152WU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-5
Current Rating	1.50 A
Number of Outputs	1 Output
Input Voltage (DC)	26.0V (max)
Output Voltage	1.25V ~ 26V
Output Current	1.5 A
Number of Positions	5 Position
voltage rating	350 mV
Input Voltage (Max)	26 V
Input Voltage (Min)	2 V
Output Voltage (Max)	25 V
Output Voltage (Min)	1.27 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	60 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
