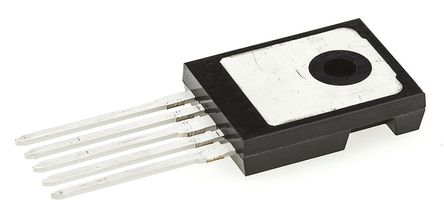

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 7.5A TO-247-5
MIC29752WWT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | TO-247-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.25V ~ 26V |
| Output Current | 7.5 A |
| Number of Positions | 5 Position |
| voltage rating | 0.08V @250mA,0.425V @7.5A,0.27V @4A |
| Input Voltage (Max) | 26 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 25 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 7.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | 2.25V ~ 26V |
| Show | |
| Size-Length | 16.26 mm |
| Size-Width | 5.28 mm |
| Size-Height | 21.44 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
