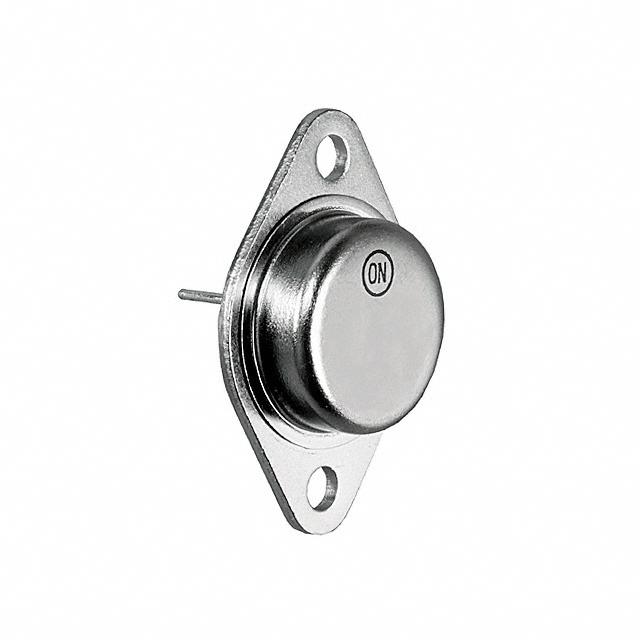

- MJ11030 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC151984524
-
Category:BJT Transistor, BJT
-
Package:TO-3
-
Datasheet:Datasheet 3D Model
-
Description:Trans Darlington NPN 90V 50A 300000mW 3Pin(2+Tab) TO-204 Tray
-
Stock Locations:
-
Availability:246 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 50 AMPERE COMPLEMENTARY DARLINGTON POWER TRANSISTORS 60 − 120 VOLTS 300 WATTS
- High−Current Complementary Silicon Power Transistors are for use
- as output devices in complementary general purpose amplifier
- applications.
- Features
- •High DC Current Gain − hFE= 1000 (Min) @ IC= 25 Adc
- hFE= 400 (Min) @ IC= 50 Adc
- •Curves to 100 A (Pulsed)
- •Diode Protection to Rated IC
- •Monolithic Construction with Built−In Base−Emitter Shunt Resistor
- •Junction Temperature to +200C
- •Pb−Free Packages are Available
MJ11030 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-3 |
| Voltage Rating (DC) | 90.0 V |
| Current Rating | 50.0 A |
| Power Dissipation | 300000 mW |
| Breakdown Voltage (Collector to Emitter) | 90 V |
| hFE Min | 1000 @25A, 5V |
| Input Power (Max) | 300 W |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 300000 mW |
| Show | |
| Operating Temperature | -55℃ ~ 200℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
