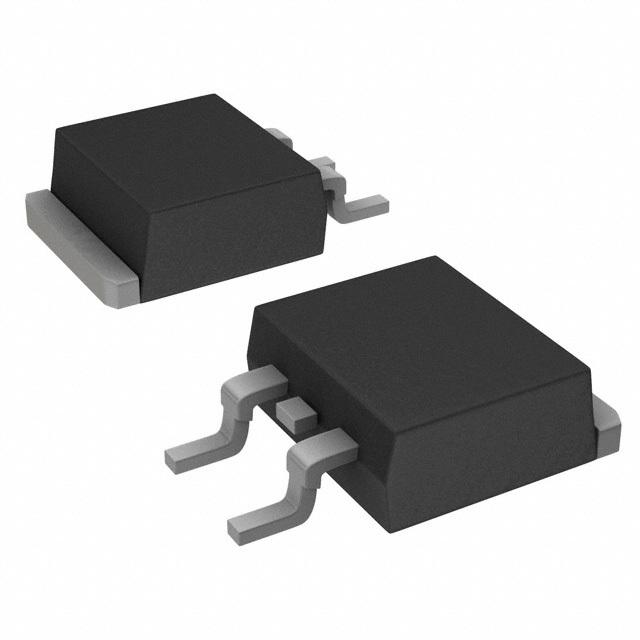

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MJB45H11 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-263-3
Voltage Rating (DC)	-80.0 V
Current Rating	-10.0 A
Polarity	PNP
Power Dissipation	50 W
Gain Bandwidth Product	50 MHz
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	10A
hFE Min	60
Input Power (Max)	2 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
	Show
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	800
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
