Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

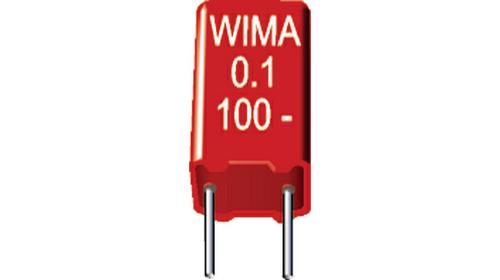

The Wima MKS2 series capacitors are radial leaded, metalized polyester (PET) film capacitors with 5mm pitch spacing. The capacitance value ranges from 0.01µF to 10µF. Typical applications include bypass, blocking, coupling, decoupling and timing. These film capacitors are non polarized electrical capacitors with an insulated Polyethylene terephthalate (PET) film as dielectric.
High volume/capacitance ratio
Self healing property
Rated voltage of 50VDC, 63VDC, 100VDC, 250VDC, 400VDC and 630VDC
±5%, ±10% and ±20% tolerance
Available in -55°C to 125°C (for >=63) and -55°C to 100°C (for 50V)temperature ranges
Compliant to IEC 60384-2 standard
Flame retardant plastic case with epoxy resin coated
Operational life is greater than 300000 hours

Show

MKS2C031001A00KSSD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Box
Pin Pitch	5 mm
Voltage Rating (DC)	63.0 V
Capacitance	0.1 µF
Capacitance Tolerance	±10 %
Part Family	MKS2
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±10 %
Voltage Rating	63 V
	Show
Size-Length	7.2 mm
Size-Width	2.5 mm
Size-Height	6.5 mm
Lead Length	6 mm
Material	PET
Dielectric Material	Polyester
Operating Temperature	-55℃ ~ 100℃
Temperature Coefficient	±330 ppm/℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
