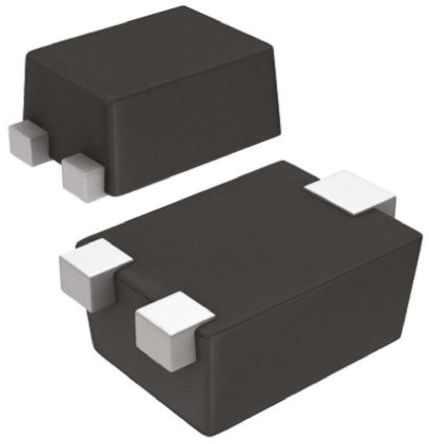

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MMBT3904SL is a NPN epitaxial Silicon Transistor designed as general-purpose amplifier with ultra-small surface-mount package. It is well suited general switching, amplification and portable applications.
PNP complementary is MMBT3906SL

Show

MMBT3904SL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-923-3
Frequency	300 MHz
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	227 mW
Gain Bandwidth Product	300 MHz
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.2A
hFE Min	100 @10mA, 1V
Input Power (Max)	227 mW
DC Current Gain (hFE)	30
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	227 mW
	Show
Size-Length	0.85 mm
Size-Width	0.85 mm
Size-Height	0.41 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
