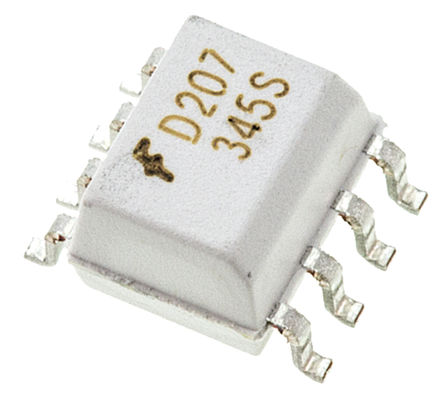

MOCD207R2M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11073800
Category:
Optocoupler, Optoisolator
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR MOCD207R2M Optocoupler, Transistor Output, 2Channel, SOIC, 8Pins, 60mA, 2.5kV, 100%
Stock Locations:
Availability:
9,305 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.45

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The MOCD207M/MOCD208M consist of two silicon phototransistors optically coupled to two GaAs infrared LEDs. These devices are constructed in a small outline surface mount package which conforms to the standard SOIC-8 footprint.
Features
■ Dual Channel Optocoupler
■ Convenient Plastic SOIC-8 Surface Mountable Package Style
■ Two channels in one compact surface mount package
■ Closely Matched Current Transfer Ratios to Minimize Unit-to-Unit Variation
■ Minimum V(BR)CEO of 70 Volts Guaranteed
■ Standard SOIC-8 Footprint, with 0.050” Lead Spacing
■ Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
■ High Input-Output Isolation of 2500 Vac (rms) Guaranteed
■ Meets U.L. Regulatory Requirements, File #E90700, Volume 2
Applications
■ Feedback control circuits
■ Interfacing and coupling systems of different potentials and impedances
■ General purpose switching circuits
■ Monitor and detection circuits

Show

MOCD207R2M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Rise/Fall Time	3.2µs, 4.7µs
Input Voltage (DC)	1.25 V
Output Voltage	70.0 V
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Forward Voltage	1.25 V
Input Current	60.0 mA
Power Dissipation	0.25 W
Rise Time	1.6 µs
Isolation Voltage	2500 Vrms
Forward Current	60 mA
Output Voltage (Max)	70 V
Input Current (Min)	60 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	60 mA
Fall Time	2.2 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Width	4.16 mm
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
