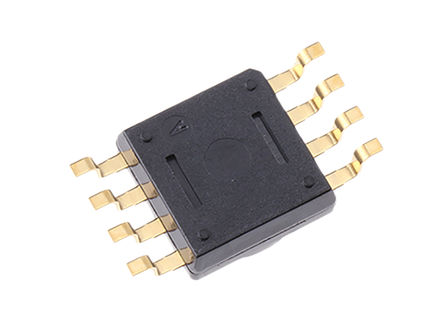

Image is for your reference only,please check specifications for details

MPXA4115A6U - Freescale
Manufacturer:
Freescale
ManyChip's Part#:
MC11461540
Category:
Pressure Sensor
Package:
SOP-8
Datasheet:
Datasheet 3D Model
Description:
Pressure Sensor 2.18PSI ~ 22.48PSI (15 kPa ~ 155 kPa) Absolute 0.2V ~ 4.8V 8-SMD Module
Stock Locations:
Availability:
193 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.73

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Integrated Silicon Pressure Sensor for Manifold Absolute Pressure, Altimeter or Barometer Sensor Applications On-Chip Signal Conditioned, Temperature Compensated and Calibrated
Motorola’s MPX4115A/MPXA4115A series sensor integrates on–chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on–chip integration make the Motorola pressure sensor a logical and economical choice for the system designer. The MPX4115A/MPXA4115A series piezoresistive transducer is a state–of–the–art, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure.
Figure 1 shows a block diagram of the internal circuitry integrated on a pressure sensor chip.
Features
• 1.5% Maximum Error over 0° to 85°C
• Ideally suited for Microprocessor or Microcontroller–Based Systems
• Temperature Compensated from –40° to +125°C
• Durable Epoxy Unibody Element or Thermoplastic(PPS) Surface Mount Package
Application Examples
• Aviation Altimeters
• Industrial Controls
• Engine Control
• Weather Stations and Weather Reporting Devices

Show

MPXA4115A6U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOP-8
Supply Voltage (DC)	5.00 V
Halogen Free Status	Not Halogen Free
Output Voltage	0.2V ~ 4.8V
Supply Current	7 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1.5 %
Supply Voltage	4.85V ~ 5.35V
Supply Voltage (Max)	5.35 V
Supply Voltage (Min)	4.85 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
