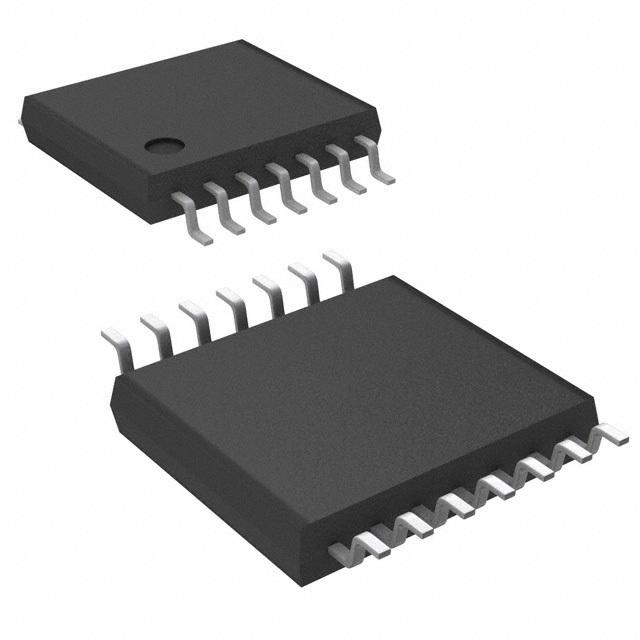

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MSP430G2001IPW14R is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with 16-bit timer and 10 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.
16-bit RISC architecture, 62.5ns instruction cycle time
Internal frequencies up to 16MHz with one calibrated frequencies
Internal very-low-power low-frequency oscillator
32kHz Crystal
External digital clock source
16-bit Timer_A with 2 Capture/Compare registers
Brownout detector
Serial on-board programming
No external programming voltage needed
Programmable code protection by security fuse
On-chip emulation logic with spy-bi-wire interface
220µA at 1MHz, 2.2V Active mode (AM) power consumption

Show

MSP430G2001IPW14R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Frequency	16.0 MHz
Supply Voltage (DC)	1.80V (min)
Operating Voltage	1.8V ~ 3.6V
Number of Positions	14 Position
Clock Speed	16.0 MHz
RAM Memory Size	128 x 8
Number of Bits	16 Bit
FLASH Memory Size	0.5 KB
FRAM Memory Size	0 B
Number of Inputs and Outputs	10 Input IO
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
