Description

PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network
This new series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SC−59 package which is designed for low power surface mount applications.
Features
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• Moisture Sensitivity Level: 1
• ESD Rating − Human Body Model: Class 1
− Machine Model: Class B
• The SC−59 Package Can be Soldered Using Wave or Reflow
• The Modified Gull−Winged Leads Absorb Thermal Stress During Soldering Eliminating the Possibility of Damage to the Die
• Pb−Free Packages are Available

Show

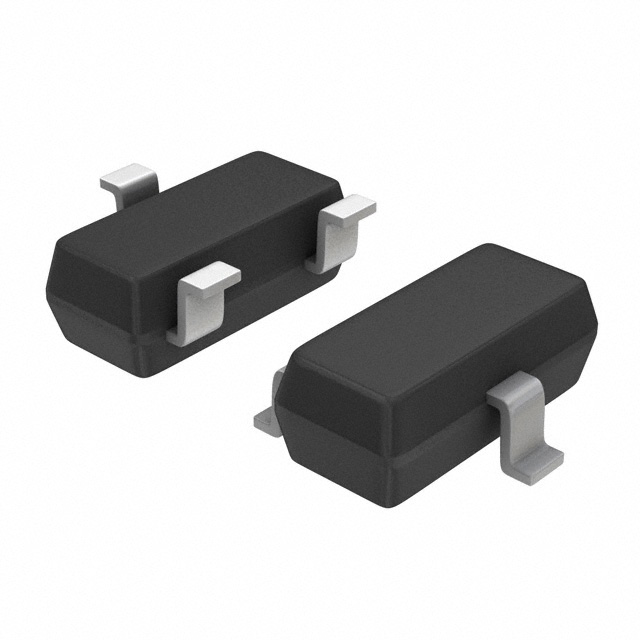

MUN2111T1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-23-3
Voltage Rating (DC)	-50.0 V
Current Rating	-100 mA
Polarity	PNP
Power Dissipation	230 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	35 @5mA, 10V
hFE Max	35
Input Power (Max)	230 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.5 mm
Size-Height	1.09 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
