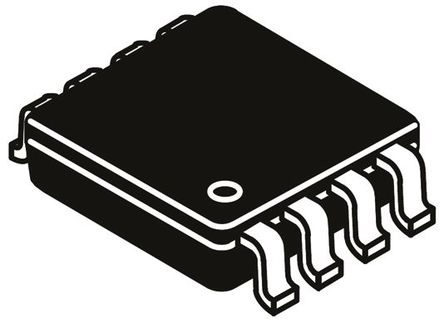

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

NC7WBD3125K8X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VFSOP-8
Number of Bits	2 Bit
Power Dissipation	250 mW
Drain to Source Voltage (Vds)	20.0 V
Continuous Drain Current (Ids)	20.0 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	7 V
Supply Voltage (Min)	0.5 V
	Show
Size-Length	2 mm
Size-Width	2.3 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
