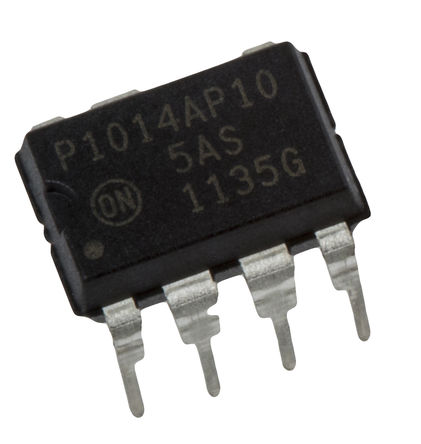

Image is for your reference only,please check specifications for details

NCP1014AP100G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8886685
Category:
AC to DC Converter, AC/DC Power Module
Package:
DIP-7
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1014AP100G AC-DC Off-Line Switcher IC, Flyback, 100VAC - 250VAC, 100kHz, 12W, DIP-7
Stock Locations:
Availability:
1,375 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.49

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1014AP100G is a self-supplied Monolithic Switcher for low standby-power offline SMPS. It integrates a fixed-frequency current-mode controller and a 700V MOSFET. Short-circuit detection takes place when the feedback signal fades away, in true short-circuit conditions or in broken opto coupler cases. External disabling is easily done either simply by pulling the feedback pin down or latching it to ground through an inexpensive SCR for complete latched-off. Finally soft-start and frequency jittering further ease the designer task to quickly develop and robust offline power supplies. For improved standby performance, the connection of an auxiliary winding stops the DSS operation and helps to consume less than 100mW at high line. In this mode, a built-in latched over-voltage protection prevents from lethal voltage runaways in case the opto coupler would brake.
Large creepage distance between high-voltage pins
Skip-cycle operation at low peak currents only - no acoustic noise
Dynamic self-supply, no need for an auxiliary winding
Internal 1ms soft-start
Latched over-voltage protection with auxiliary winding operation
Frequency jittering for better EMI signature
Auto-recovery internal output short-circuit protection
Internal temperature shutdown
Direct opto coupler connection
SPICE models available for transient analysis

Show

NCP1014AP100G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-7
Frequency	100 kHz
Power Rating	12 W
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Current	450 mA
Breakdown Voltage	700 V
Number of Positions	7 Position
Power Dissipation	19.0 W
Rise Time	20 ns
Switching Frequency	100 kHz
Duty Cycle	67 %
Input Voltage (Max)	10 V
Input Voltage (AC Max)	250 v
Input Voltage (AC Min)	100 v
Output Voltage (Max)	700 V
Output Current (Max)	250 mA
Maximum Duty Cycle	72 %
Operating Temperature (Max)	150 ℃
Supply Voltage (Max)	10 V
Input Voltage	8.5V ~ 10V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	3.44 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
