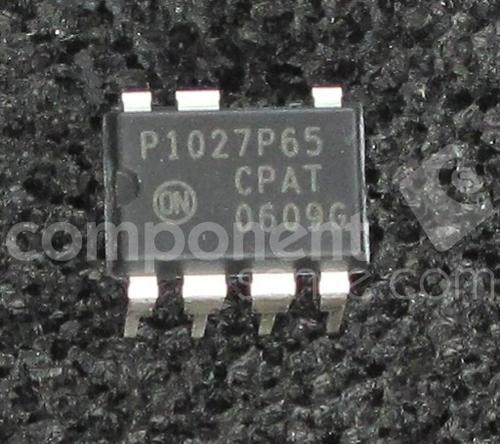

- NCP1027P065G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC13786311
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:ON SEMICONDUCTOR NCP1027P065G AC-DC Off-Line Switcher IC, Flyback, 90VAC - 265VAC, 65kHz, 25W, DIP-8
-
Stock Locations:
-
Availability:205 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.26
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP1027P065G is a High-voltage Switcher for medium power offline Switched Mode Power Supply (SMPS) featuring low standby power. Our proprietary high-voltage technology lets us include a power MOSFET together with a startup current source, all directly connected to the bulk capacitor. To prevent lethal runaway in low input voltage conditions, an adjustable brown-out circuitry blocks the activity until sufficient input level is reached. Furthermore, an over power protection pin brings the ability to precisely compensate all internal delays in high input voltage conditions and optimize the maximum output current capability. Protection wise, a timer detects an overload or short-circuits and stops all operations, ensuring a safe auto-recovery, low duty cycle burst operation. An integrated, auto-recovery, overvoltage protection permanently monitors the VCC level and temporarily shuts down the driving pulses in case of an unexpected feedback loop runaway.
- Skip-cycle operation at low peak currents
- Internal current source for clean and lossless startup sequence
- Auto-recovery output short circuit protection with timer-based detection
- Auto-recovery overvoltage protection with auxiliary winding operation
- Programmable brown-out input for low input voltage detection
- Programmable over power protection
- Input to permanently latch-OFF the part
- Internal frequency jittering for improved EMI signature
- 80% Extended duty cycle operation
- 85mW at 265VAC No-load input standby power
- 500mW Loaded, input power of 715mW at 230VAC
- 65 and 100kHz Current-mode fixed frequency operation
- 800mA Fixed peak current
NCP1027P065G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Frequency | 65.0 kHz |
| Supply Voltage (DC) | 8.90V (max) |
| Power Rating | 25 W |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 700 V |
| Output Current | 800 mA |
| Breakdown Voltage | 700 V |
| Number of Positions | 8 Position |
| Power Dissipation | 25.0 mW |
| Output Power | 25 W |
| Switching Frequency | 65 kHz |
| Duty Cycle | 80 % |
| Input Voltage (AC Max) | 265 v |
| Input Voltage (AC Min) | 90 v |
| Maximum Duty Cycle | 87 % |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Max) | 8.9 V |
| Supply Voltage (Min) | 7.9 V |
| Input Voltage | 7.2V ~ 10V |
| Show | |
| Size-Height | 3.44 mm |
| Operating Temperature | 0℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
