Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

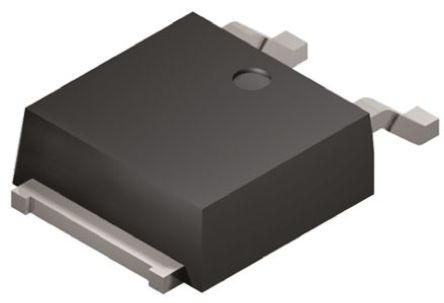

Case/Package | TO-252-3 |
Operating Voltage | 0V ~ 20V |
Halogen Free Status | Halogen Free |
Number of Outputs | 1 Output |
Output Voltage | 12 V |
Output Current | 1 A |
Number of Positions | 3 Position |
Polarity | P-Channel |
Quiescent Current | 10 mA |
voltage rating | 1.07 V |
Input Voltage (Max) | 20 V |
Input Voltage (Min) | 2.4 V |
Output Current (Max) | 2.2 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | 0 ℃ |
Accuracy | ±1 % |
Input Voltage | ≤20 V |
Show | |
Size-Length | 6.73 mm |
Size-Width | 6.22 mm |
Size-Height | 2.38 mm |
Operating Temperature | 0℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance Edition | 2016/06/20 |
ECCN Code | EAR99 |
